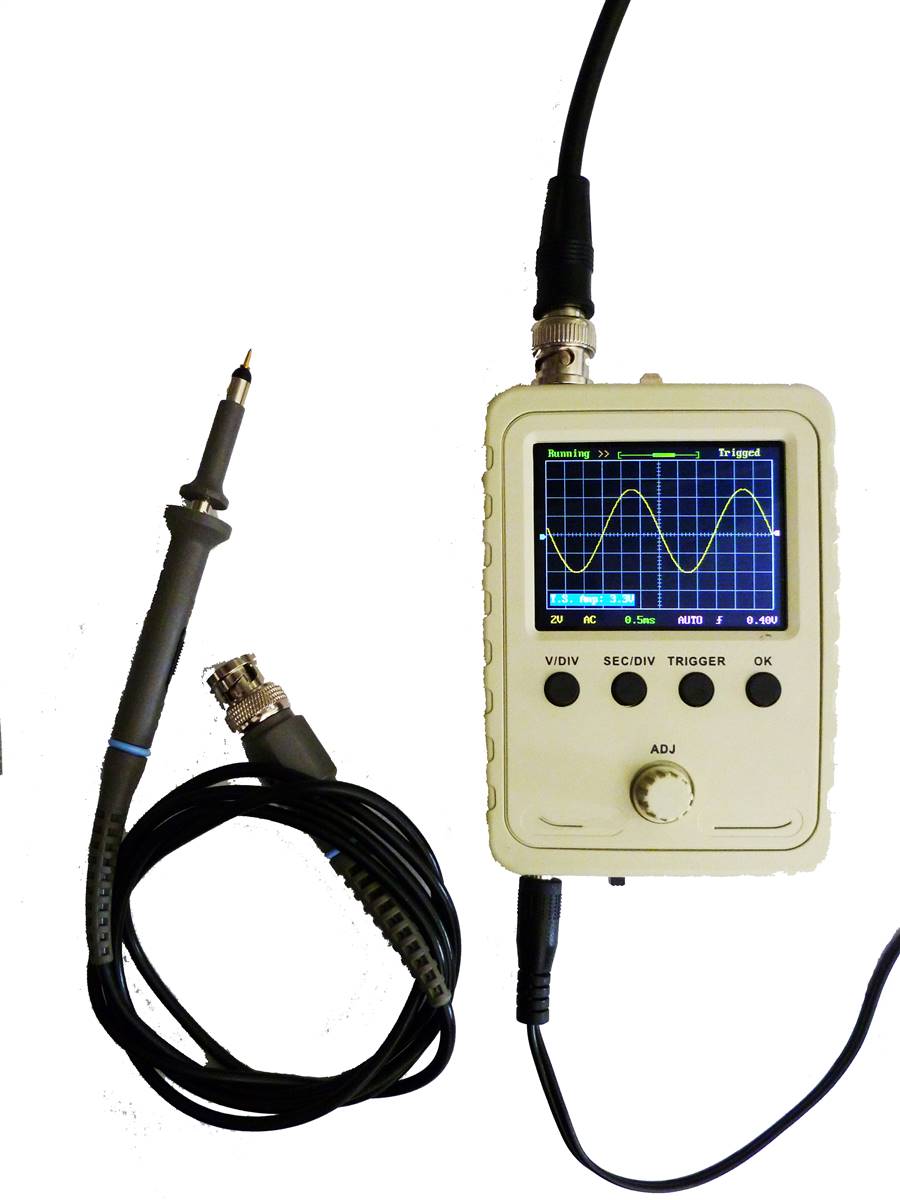

A versatile, affordable, solid state oscilloscope which is ideal for student use. Although the unit is compact in size, it is packed with features. Comes complete with x1/x10 probe and a 9V plug-top power supply.
• Number of channels: 1• Analogue bandwidth: 0-200KH• Sensitivity: 5mV/Div - 20V/Div• Sensitivity error: < 5%• Resolution: 12-bit• Input Impedance: 1M ohm• Maximum input voltage: 50Vpk• Coupling: DC, AC, GND• Max real-time sampling rate: 1 Msps• Timebase: 10us/Div - 500s/Div• Record length: 1024• Trigger modes: Auto, Normal, Single• Trigger types: Rising/Falling edge• Trigger position: 1/2 of buffer size fixed• 2.4 inch colour TFT LCD with 320x240 resolution• 1Khz clibration frequency
Product Code : OSC-500-100Length: 1024Resolution: 12-bitInput voltage: 50VpkTime: 10us/Div - 500s/DivSensitivity: 5mV/Div - 20V/DivBandwidth: 0-200KHImpedance: 1M ohmSample rate: 1 Mspssensitivity error: < 5%Trigger Modes: Auto, Normal, SingleTrigger types: Rising/Falling edgeTrigger Position: 1/2 of buffer size fixedNumber of Channels: 1
